ARTIC TEC

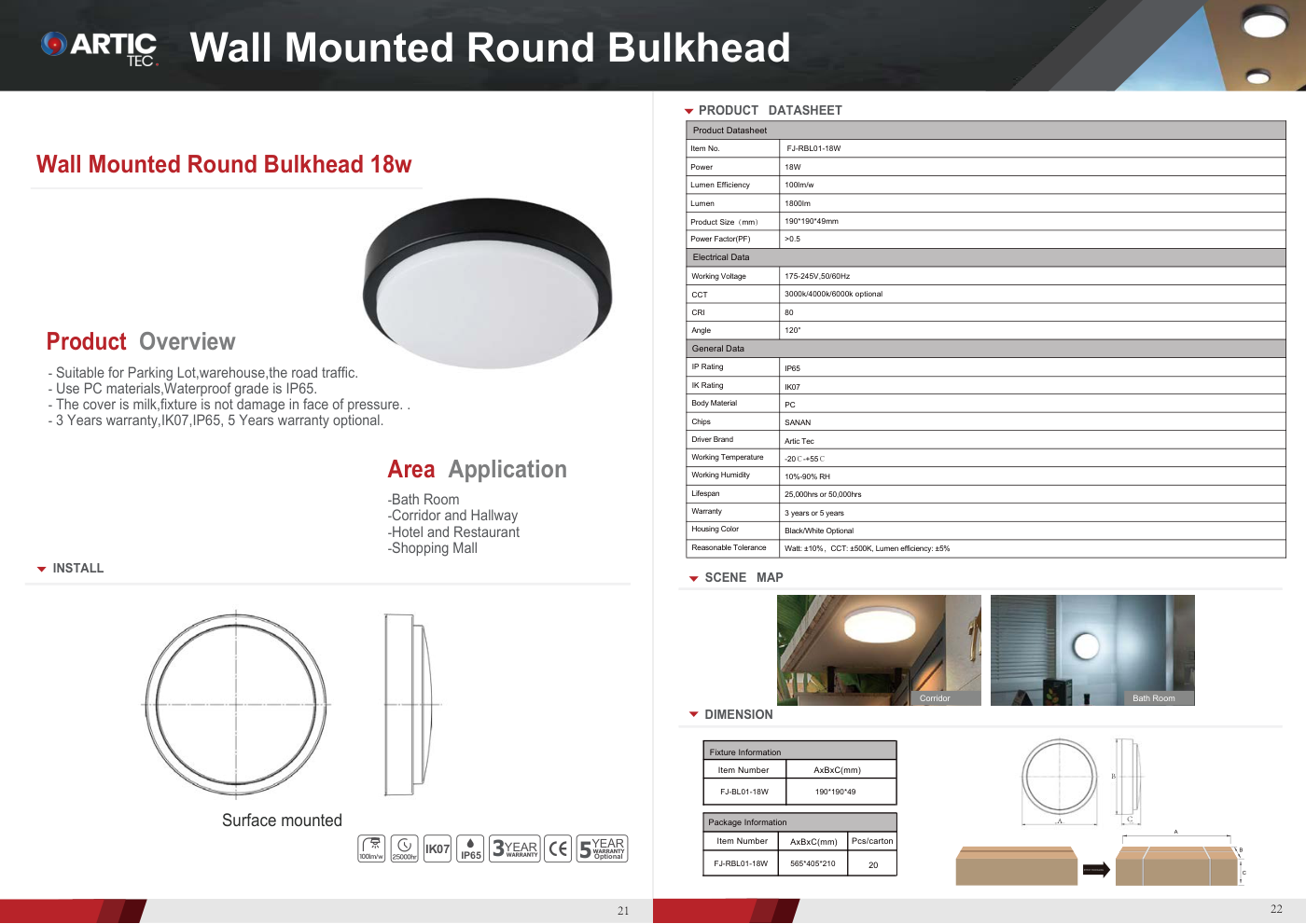

WALL MOUNTED ROUND BULKHEAD 18W
Product Overview
- Suitable for parking lots, warehouses, and road traffic
- PC materials, waterproof grade IP65
- Milk cover — fixture is not damaged under pressure
- 3 years warranty, IK07, IP65, 5 years warranty optional
- Area application: Bath Room, Corridor and Hallway, Hotel and Restaurant, Shopping Mall.
- Install: Surface mounted.
Highlight
IP65 bulkhead
Suitable for parking lots, warehouses, and road traffic
Product Datasheet
| Item No. | FJ-RBL01-18W |
|---|---|
| Power | 18W |
| Lumen Efficiency | 100lm/w |
| Lumen | 1800lm |
| Product Size | 190×190×49 mm |
| Power Factor (PF) | >0.5 |
| Working Voltage | 175-245V, 50/60Hz |
| CCT | 3000k/4000k/6000k optional |
| CRI | 80 |
| Angle | 120° |
| IP Rating | IP65 |
| IK Rating | IK07 |
| Body Material | PC |
| Chips | SANAN |
| Driver Brand | Artic Tec |
| Working Temperature | -20°C ~ +55°C |
| Working Humidity | 10%-90% RH |
| Lifespan | 25,000hrs or 50,000hrs |
| Warranty | 3 years or 5 years |
| Housing Color | Black/White optional |
| Reasonable Tolerance | Watt: ±10%, CCT: ±500K, Lumen efficiency: ±5% |
Dimension
Fixture information · AxBxC (mm)
| FJ-RBL01-18W | 190×190×49 |
|---|
Package information · AxBxC (mm) · PCS/carton
| FJ-RBL01-18W | 565×405×210 | 20 |
|---|
