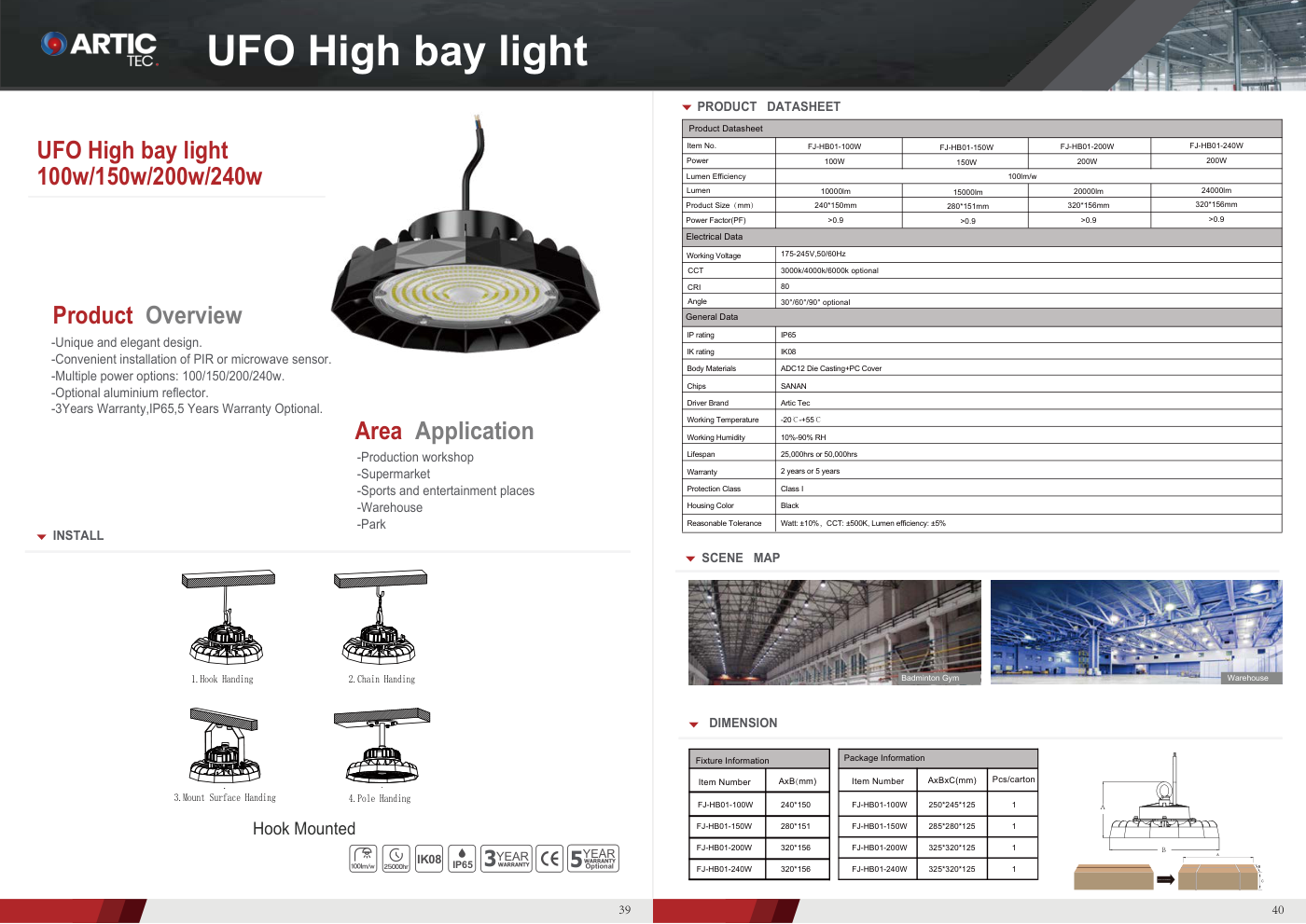

UFO High bay light 39 — technical sheet

ARTIC TEC

UFO HIGH BAY LIGHT 100W/150W/200W/240W

Unique and elegant design
Convenient installation of PIR or microwave sensor
Multiple power options: 100/150/200/240W
Optional aluminium reflector
3 years warranty, IP65, 5 years warranty optional
Area application: Production workshop, Supermarket, Sports and entertainment places, Warehouse, Park.
Install: Hook, chain, surface, or pole hanging.

Highlight

Unique and elegant design

Item No.	FJ-HB01-100W	FJ-HB01-150W	FJ-HB01-200W	FJ-HB01-240W
Power	100W	150W	200W	240W
Lumen Efficiency	100lm/w	100lm/w	100lm/w	100lm/w
Lumen	10000lm	15000lm	20000lm	24000lm
Product Size	240×150 mm	280×151 mm	320×156 mm	320×156 mm
Power Factor (PF)	>0.9	>0.9	>0.9	>0.9
Working Voltage	175-265V, 50/60Hz	175-265V, 50/60Hz	175-265V, 50/60Hz	175-265V, 50/60Hz
CCT	3000k/4000k/6000k optional	3000k/4000k/6000k optional	3000k/4000k/6000k optional	3000k/4000k/6000k optional
CRI	80	80	80	80
Angle	30°/60°/90° optional	30°/60°/90° optional	30°/60°/90° optional	30°/60°/90° optional
IP Rating	IP65	IP65	IP65	IP65
IK Rating	IK08	IK08	IK08	IK08
Body Material	ADC12 Die Casting+PC Cover	ADC12 Die Casting+PC Cover	ADC12 Die Casting+PC Cover	ADC12 Die Casting+PC Cover
Chips	SANAN	SANAN	SANAN	SANAN
Driver Brand	Artic Tec	Artic Tec	Artic Tec	Artic Tec
Working Temperature	-20°C ~ +55°C	-20°C ~ +55°C	-20°C ~ +55°C	-20°C ~ +55°C
Working Humidity	10%-90% RH	10%-90% RH	10%-90% RH	10%-90% RH
Lifespan	25,000hrs or 50,000hrs	25,000hrs or 50,000hrs	25,000hrs or 50,000hrs	25,000hrs or 50,000hrs
Warranty	3 years or 5 years	3 years or 5 years	3 years or 5 years	3 years or 5 years
Protection Class	Class I	Class I	Class I	Class I
Housing Color	Black	Black	Black	Black
Reasonable Tolerance	Watt: ±10%, CCT: ±500K, Lumen efficiency: ±5%	Watt: ±10%, CCT: ±500K, Lumen efficiency: ±5%	Watt: ±10%, CCT: ±500K, Lumen efficiency: ±5%	Watt: ±10%, CCT: ±500K, Lumen efficiency: ±5%

Fixture information · AxBxC (mm)

Package information · AxBxC (mm) · PCS/carton
