ARTIC TEC

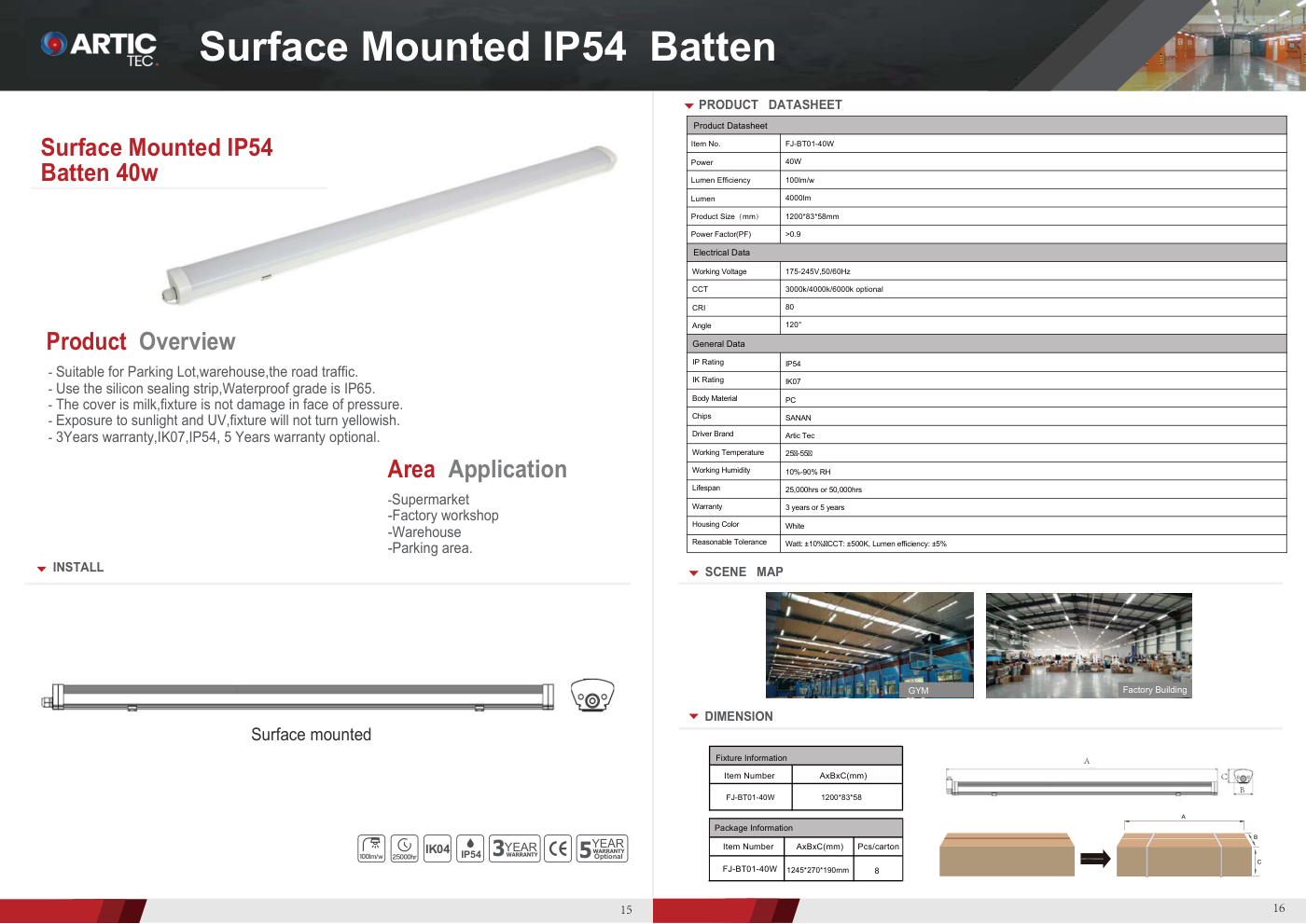

SURFACE MOUNTED IP54 BATTEN 40W
Product Overview
- Suitable for parking lots, warehouses, and road traffic
- Silicon sealing strip
- Milk cover — fixture is not damaged under pressure
- Will not turn yellowish under sunlight and UV
- 3 years warranty, IK07, IP54, 5 years warranty optional
- Area application: Supermarket, Factory workshop, Warehouse, Parking area.
- Install: Surface mounted.
Highlight
IP54 batten
Suitable for parking lots, warehouses, and road traffic
Product Datasheet
| Item No. | FJ-BT01-40W |
|---|---|
| Power | 40W |
| Lumen Efficiency | 100lm/w |
| Lumen | 4000lm |
| Product Size | 1200×83×58 mm |
| Power Factor (PF) | >0.9 |
| Working Voltage | 175-245V, 50/60Hz |
| CCT | 3000k/4000k/6000k optional |
| CRI | 80 |
| Angle | 120° |
| IP Rating | IP54 |
| IK Rating | IK07 |
| Body Material | PC |
| Chips | SANAN |
| Driver Brand | Artic Tec |
| Working Temperature | -25°C ~ 55°C |
| Working Humidity | 10%-90% RH |
| Lifespan | 25,000hrs or 50,000hrs |
| Warranty | 3 years or 5 years |
| Housing Color | White |
| Reasonable Tolerance | Watt ±10%, CCT: ±500K, Lumen efficiency: ±5% |
Dimension
Fixture information · AxBxC (mm)
| FJ-BT01-40W | 1200×83×58 |
|---|
Package information · AxBxC (mm) · PCS/carton
| FJ-BT01-40W | 1245×270×190 | 8 |
|---|
