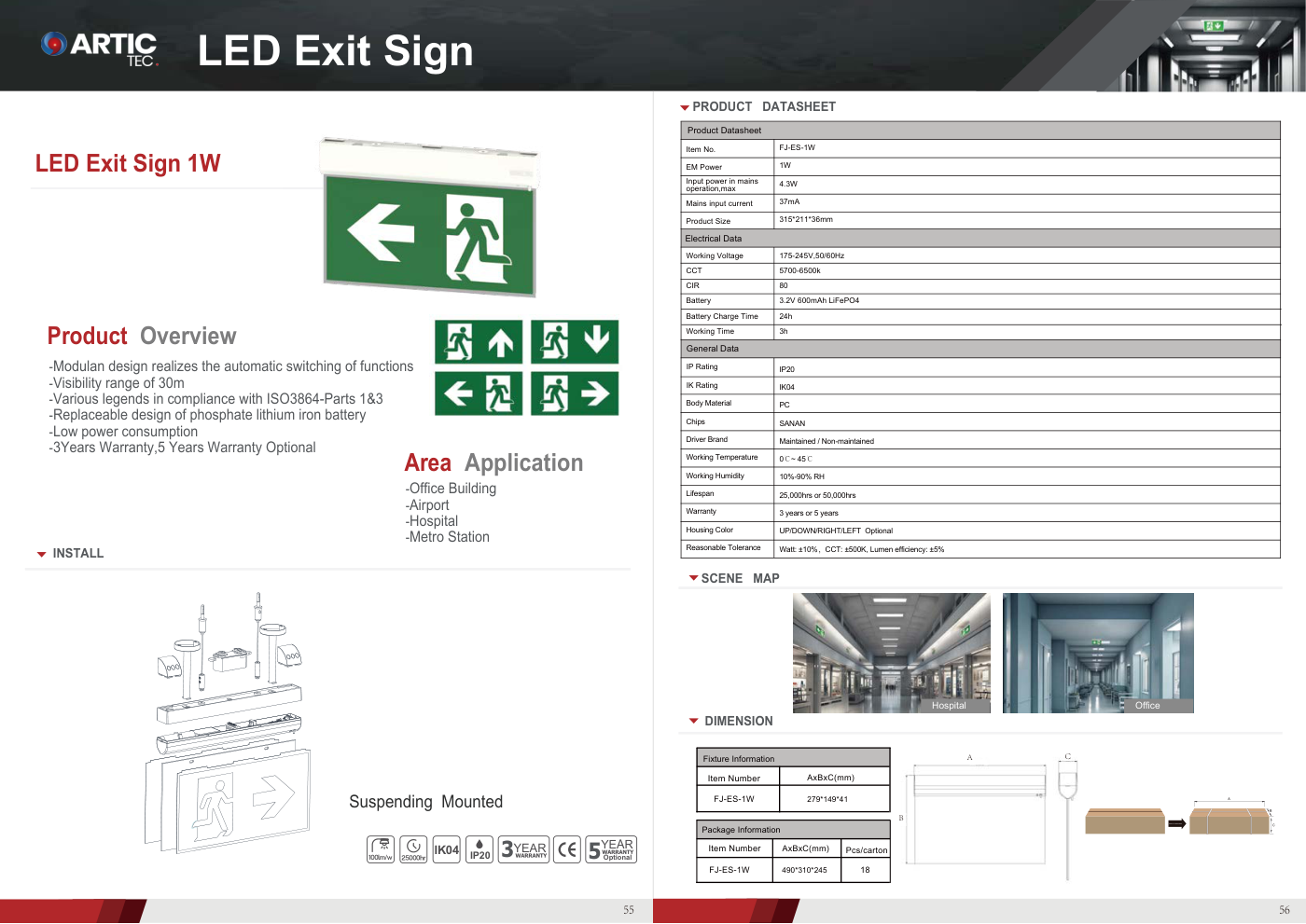

ARTIC TEC
LED EXIT SIGN 1W
Product Overview
- Modular design for automatic switching of functions
- Visibility range of 30m
- Various legends in compliance with ISO 3864 Parts 1 & 3
- Replaceable lithium iron phosphate battery
- Low power consumption
- 3 years warranty, 5 years warranty optional
- Area application: Office Building, Airport, Hospital, Metro Station.
- Install: Suspending mounted.
Highlight
30m visibility
Modular design for automatic switching of functions
Product Datasheet
| Item No. | FJ-ES-1W |
|---|---|
| EM Power | 1W |
| Input power in mains operation, max | 4.3W |
| Mains input current | 37mA |
| Product Size | 315×211×36 mm |
| Working Voltage | 175-245V, 50/60Hz |
| CCT | 5700-6500k |
| CRI | 80 |
| Battery | 3.2V 600mAh LiFePO4 |
| Battery charge time | 24h |
| Working time | 3h |
| IP Rating | IP20 |
| IK Rating | IK04 |
| Body Material | PC |
| Chips | SANAN |
| Function | Maintained / Non-maintained |
| Working Temperature | 0°C ~ 45°C |
| Working Humidity | 10%~90% RH |
| Lifespan | 25,000hrs or 50,000hrs |
| Warranty | 3 years or 5 years |
| Legend | UP / DOWN / RIGHT / LEFT optional |
| Reasonable Tolerance | Watt: ±10%, CCT: ±500K, Lumen efficiency: ±5% |
Dimension
Fixture information · AxBxC (mm)
| FJ-ES-1W | 279×149×41 |
|---|
Package information · AxBxC (mm) · PCS/carton
| FJ-ES-1W | 490×310×245 | 18 |
|---|
